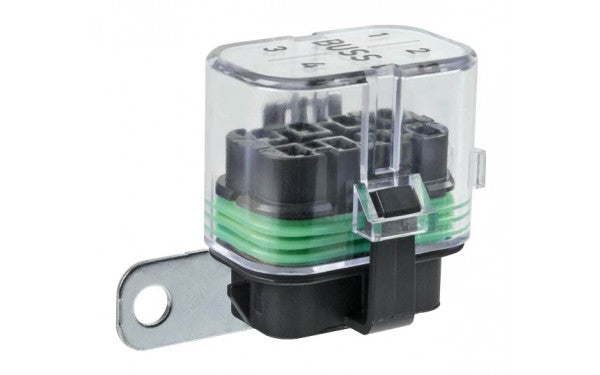

Low Profile Mini Electrical Centre Kit

FH08

Cover: Low Profile

Features

• Designed to accept up to;
  - 2 micro 280 relays.
  - 4 mini blade fuses / circuit breakers.
  - 1 micro 280 relay & 2 mini blade fuses / circuit breakers.
• Compact size.
• Easy mounting.
• Eliminates excess wiring.
• Clear cover for protection & easy visiual inspection.
• High qulaity Packard™ terminals.
• Environmentally sealed.

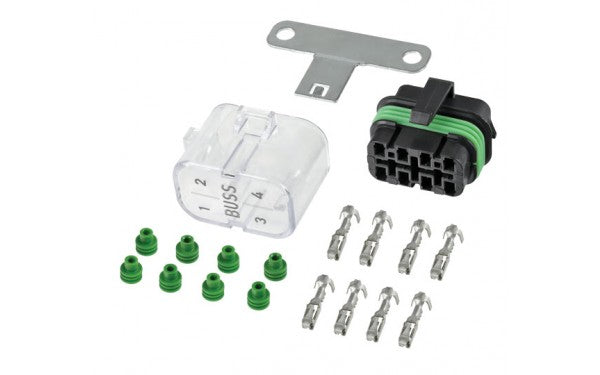

Kit Contains:

1 x Mini Electrical Centre Body

1 x Mini Electrical Centre Cover

1 x Mounting Bracket

8 x Socket 0.8-1mm² (12077411)

8 x Seals 0.8-1mm² (15324982)

Specification

• Current Rating: 120A max.
• Cover: Polycarbonate
• Body: Thermoplastic
• Seal: Silicon Rubber
• Terminals: Tinned Brass
• Mount: Zinc Plated Steel
• Operating Temp: -40°C to 125°C
• IP Rating: IP6
