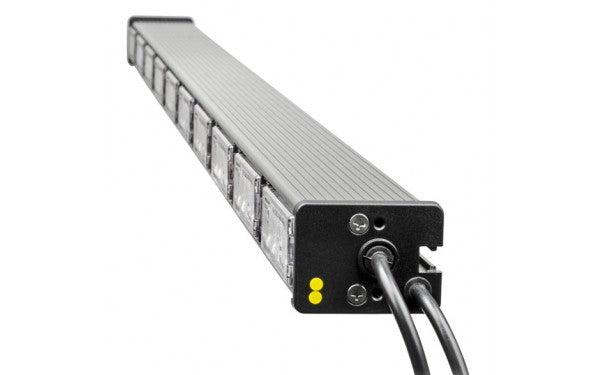

12-24V Blue/Amber/Blue LED Traffic Director

LSTA003

Features

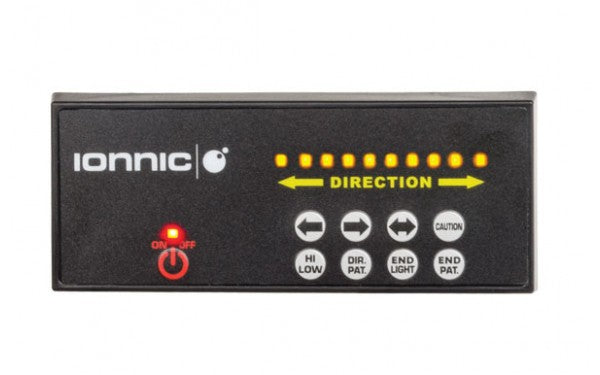

• Controller shows flash patterns in real time.
• Each mode has multiple selectable flash patterns.
• Supplied complete with mounting bracket, controller and harness.
• 10 epoxy sealed, high output LED modules.
• End modules available in 4 colour combinations.
• Dimming function via controller.
• Epoxy encapsulated electronics for environmental & vibration protection.
• Multiple mounting options.
• LEDs rated to 100,000 hours.
• Low current draw.
• Multi-voltage.

Specifications

• Voltage: 12-24V
• Current Draw: 3.45A @ 12V
• Lens: Polycarbonate
• Base: Aluminium
• Approvals: ECE R10, SAE-W-07
• Controller Harness: 5.5m
• Power Harness: 12.5m
• Weight: 3.6kg
• Ingress Protection: LED Modules - IP67
• Light Source: LED
• Operating Temp: -40°C to 80°C
