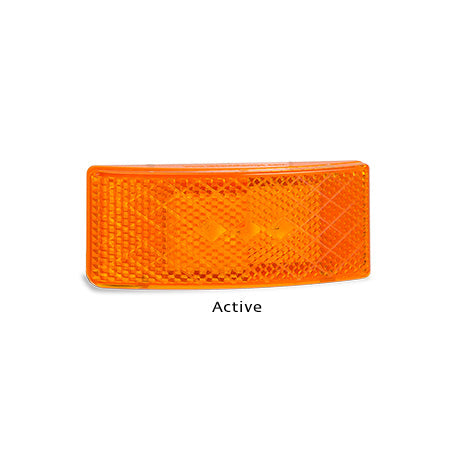

12-24 Volt Side Marker Lamp with Inbuilt Reflector

EU38AM - Blister Single

Features

• Easy to fit no tools required
• Serrated plug and 3M tape
• 3M Tape version only available
• Low profile
• Inbuilt Reflector
• ECE approved
• IP67 100% Water proof

Fitting Instructions

Drill two 6mm holes for serrated plugs and one 8mm hole or larger for the cable. Remove the protective film from the back and simply push into place. Please refer to ADR 13/00 for mounting instructions.

Specifications

Function: Side Marker Lamp
Size: 100mm x 38mm x 13mm
Voltage: Multivolt 12-24V
Cable: 10cm
Lens: PMMA Acrylic
Base: ABS
LED Qty: 3
Draw
@13.8V: 0.01A
@28V: 0.01A
Approvals ECE
Category: SM1-E9-00
CRN:  1304
Reflector ECE
Category: IA-E9-02
CRN:  1304
