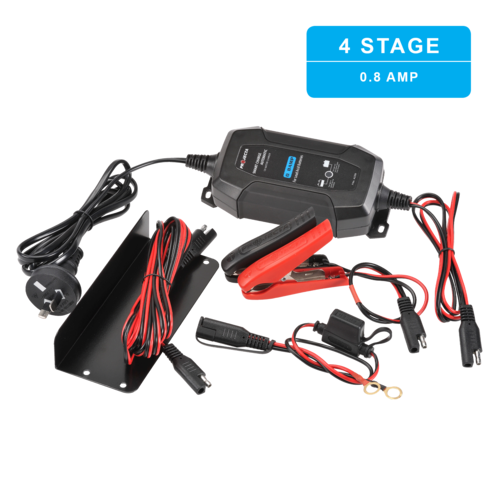

Projecta 12 Volt Automatic Battery Charger AC008

INPUT (NOMINAL)

100VAC-240VAC, 50-60HZ

INPUT POWER

17W

OUTPUT VOLTAGE

12V

OUTPUT CURRENT

0.8A

CHARGING STAGES

4

1. BATTERY HEALTH CHECK

0.8A UP TO 10.0V

1A. STOP CHARGING

If battery voltage has not reached 10.0V within 2 hours Stage 1, stop charging. Set error.

2A. BULK

0.8A to 14.4V

2B. BULK TIMEOUT, DISPLAY F4, STOP CHARGING

22 HOURS ± 10%

3A. ABSORPTION VOLTAGE HOLD FOR 30 MINS TRANSIT TO FLOAT

14.4V

4. FLOAT VOLTAGE MAX VOLTAGE IS 13.5V FOR 2 MIN OR CURRENT <0.3A, THEN OFF FOR 3 MIN. REPEAT

13.5V for 2 mins or <0.3A then 2 mins rest, repeat

BATTERY VOLTAGE DROPS BELOW A SET VOLTAGE RESTARTS BULK

12.0V

IP RATING

IP65
