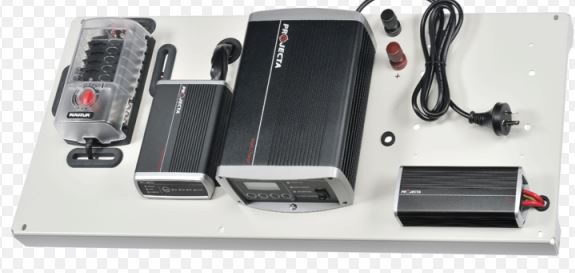

Projecta ICB3500 12V 35A Power Management Board

Utilising the latest range of premium ‘Intelli’ power management equipment, these 35 Amp power boards are a sophisticated and complete system that is ideal for caravan and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.

240V Charging Specifications:

• Charge Type 7 Stage Automatic
• Input 240VAC, 50Hz, 570W
• Output 12V
• Output Current 2, 8,16, 35A
• Batteries Supported Gel, AGM, Wet & Calcium

Solar Controller Specifications:

• Charge Type 3 Stage
• Input 9-32Vdc
• Max Solar Input 23Vdc, 385W
• Batteries Supported GEL, AGM & WET
• Alternator type Smart & Conventional

LVD CONTROL Specifications:

• Input Voltage 10-16V
• Output Current 50A
• Disconnect Voltage Setpoints 10.0V, 10.5V, 11.0V, 12.0V
• Reconnect Voltage 13.0V

Fuse Block Specifications:

• Load 30A per circuit, 120A per block at 12V
• Circuits 6-Way ATS Blade Fuses

Features:

• A sophisticated 7A automatic charger that features multi-chemistry selection and adjustable output to match your battery type
• Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge
•  A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge
• A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs
• Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries (P/No. INVPOSTS)
• Dimensions 860mm x 345mm x 45mm
