Redarc QuickFit X40 75A Integrated Power Panel with RedVision® Display | ICMS012-75 for RVs & Off-Grid Vehicles

Redarc QuickFit X40 75A Integrated Power Panel (ICMS012-75) - Fully Integrated Power Management Solution

The Redarc QuickFit X40 75A Integrated Power Panel is a complete power management solution designed for modern off-grid recreational vehicles, including caravans, motor-homes, and travel trailers. Offering ultimate convenience, the system integrates Redarc’s RedVision® Display and Smart Battery Monitor for easy control and monitoring, ensuring more time for your adventures and less time spent managing power.

This fully integrated, pre-wired solution includes the 75A Manager Alpha with RedVision® Display and Smart Battery Monitor, along with two TVMS Rogue Control Modules for superior power distribution and control. Whether you're on the road or parked at a campsite, the QuickFit X40 ensures continuous, reliable power, making it the ideal choice for off-grid living.

Key Features:

• Charge batteries from the vehicle's alternator, solar panels, or mains power for constant power anywhere.
• Pre-wired and fully assembled for easy, quick installation with reduced complexity (installation time is 50% faster than assembling individual components).
• 20 programmable channels: 16x switch inputs, 4x tank inputs for controlling lighting, water pumps, accessories, and more.
• Efficient power management: Automatically switches off non-essential loads when battery levels are low to conserve energy.
• Smart control: Use the RedVision® App via Bluetooth to control lighting, check battery levels, and monitor water tanks from anywhere in your RV.
• Supports up to 16 switch inputs for flexible control of lights, accessories, and pumps from multiple locations in your vehicle.
• Compact design maximises space without compromising on performance; includes integrated cable management for a professional finish.
• Fully tested for consistent, reliable performance.

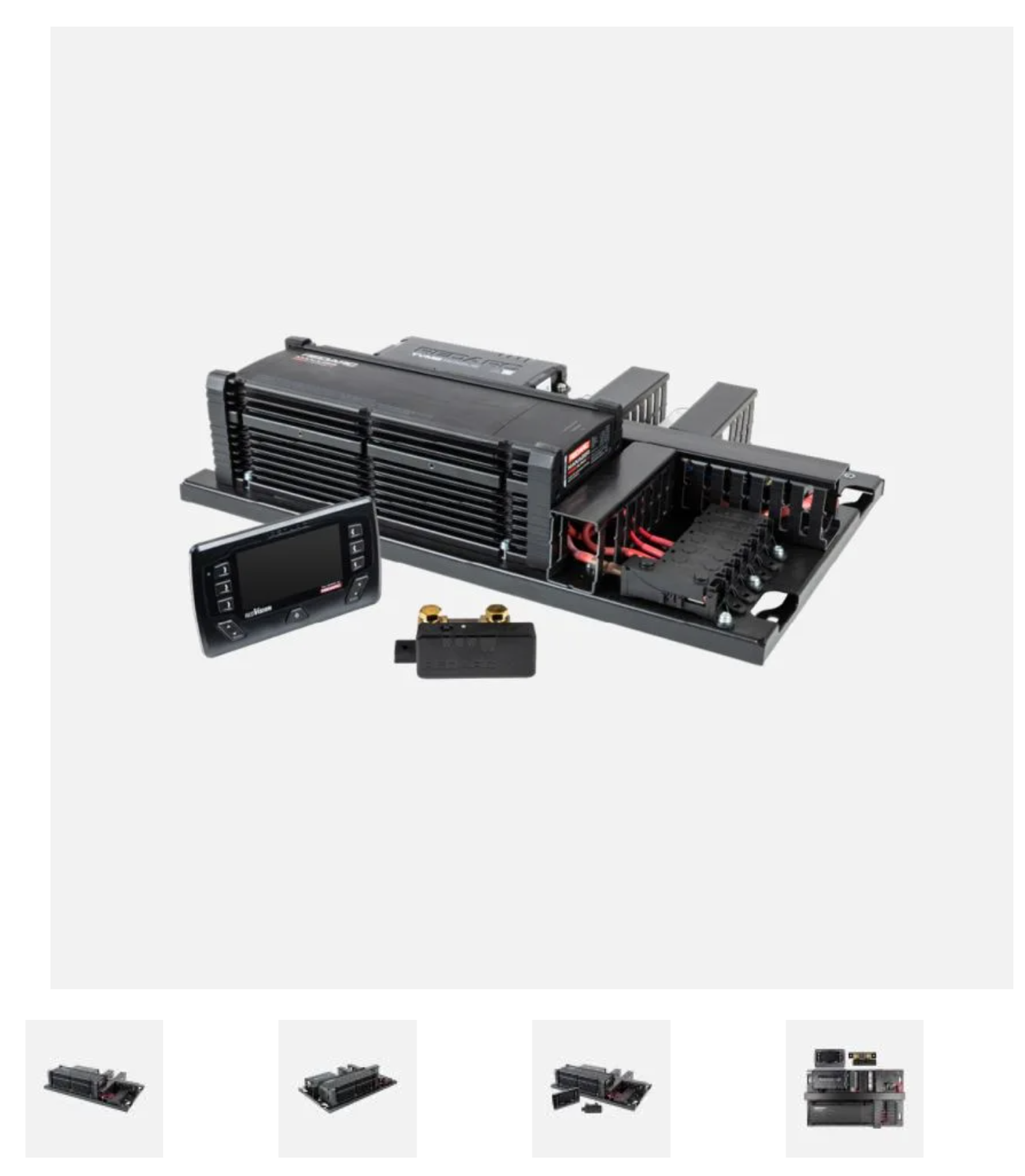

Included Components:

• Manager Alpha 75A with RedVision® Display
• 2 x TVMS1240 Rogue Control Modules
• Solar Isolator/Breaker
• Blue Sea 8-Way Fuse Block for external loads
• Spare MIDI Fuses for external loads
• Blue-Sea Negative Bus Bar
• Cable Management Trunking

Specifications:

• Max. Charger Current: 75A
• Display Size: 4.3 inches
• Weight: 14.9 kg
• Dimensions (H x W x D): 145.8mm x 380mm x 650mm
• Warranty: 2 Years
• GTIN Barcode: 9338628010967

Why Choose the Redarc QuickFit X40?

• Total Control & Fast Charging: Streamlined solution that brings together Manager Alpha and TVMS Rogues for efficient battery management and device control.
• Compact & Professional: Optimized design for high performance in small spaces, ensuring a professional and neat installation.
• Expert Support: Backed by REDARC’s leading technical support and the REDARC REDNetwork, providing hassle-free support nationwide.

Simplify your RV's power management and enjoy the freedom of off-grid living with the Redarc QuickFit X40 75A Power Panel. Whether you're on a long road trip or parked at your favorite campsite, stay powered up and in control with this all-in-one solution!
